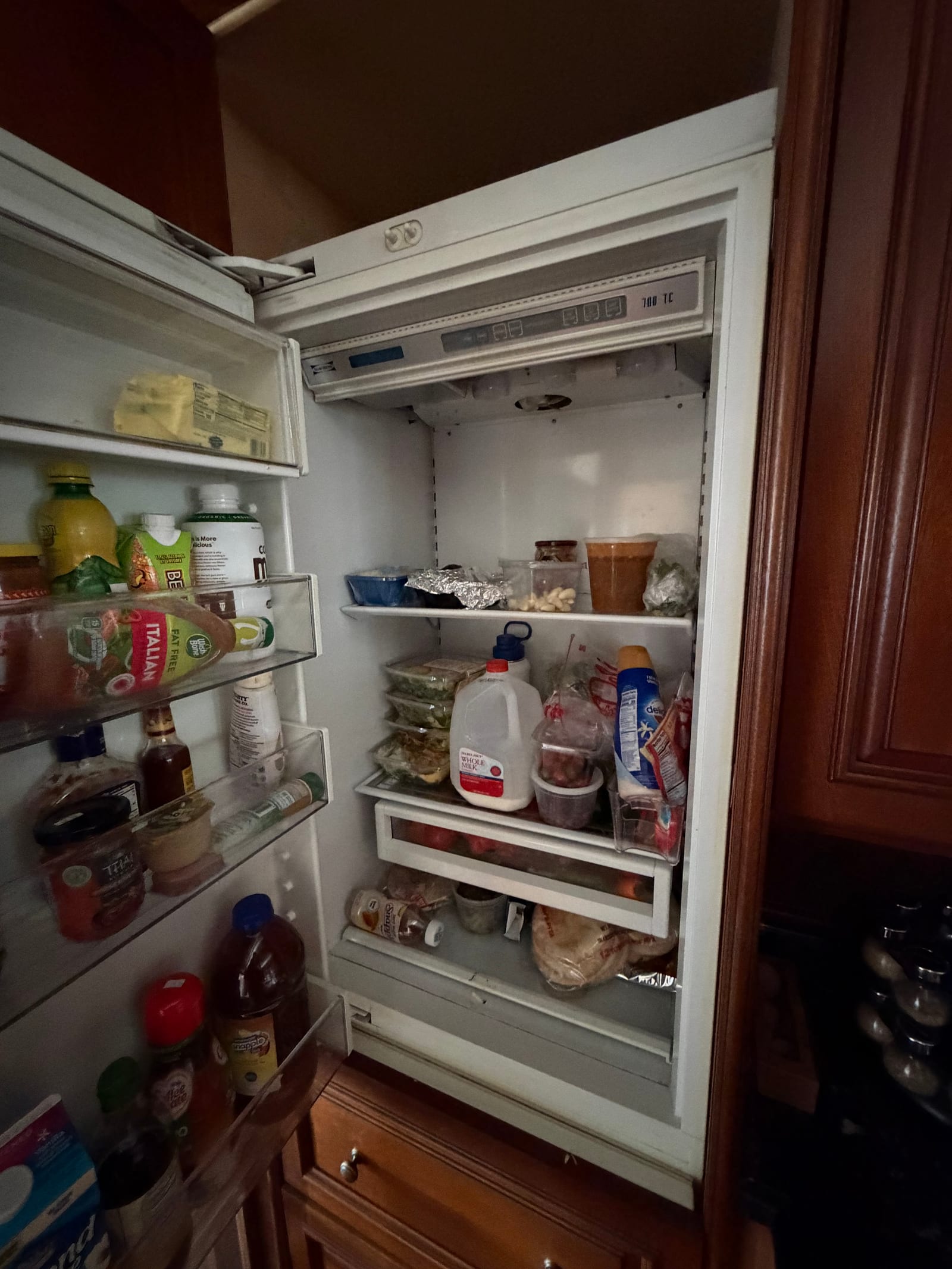

The Sub-Zero Designer Series is the panel-ready integrated line — refrigerator columns, freezer columns, wine columns, and undercounter drawers designed to disappear into the cabinetry. These are some of the most expensive refrigeration units in any kitchen, and they're harder to service than the visible BI series because everything happens behind a custom panel.
What Designer Series owners care about
If you bought a Designer Series unit, the panel matters as much as the appliance. Cabinet shops install these to tolerances of less than a millimeter — the panel reveals are designed to match adjacent cabinetry exactly. A tech who removes the panel incorrectly can damage the mounting hardware, the cabinet face, or both. We've seen second-opinion calls where a previous tech bent the panel mounting bracket trying to "save time" and left an a major cabinet repair behind.
For Designer Series service, the first thing we do is photograph the panel position and document the mounting hardware. We then remove the panel only if the repair requires it — many issues can be addressed through the kick plate or by partial pull-out.
Designer Series models we service
- IT-30R / IT-30RID — 30" all-refrigerator integrated column
- IT-30FI — 30" all-freezer integrated column
- IT-36CI — 36" French door integrated
- IC-24R, IC-24FI — 24" undercounter integrated
- ID-30C, ID-36C — Designer column refrigerator/freezer combos
- 427RG, 424G — Integrated wine storage with glass door
Common Designer Series failures
- Door spring/closer mechanism — the doors are heavy with the panel attached and the closer hardware fails before the rest of the unit
- Drain pan overflow — the drain line is often the only weak link, and an overflow can damage cabinetry
- Door hinge sag — over years, the heavy door panel pulls the top hinge down and the seal fails along the top edge
- Evaporator fan housing crack — plastic housings on early Designer units develop cracks that cause vibration noise
- Control board on Designer column with internal ice maker — the column ice maker board is a known weak point
- Compressor relay (start) failure — common across the whole Sub-Zero line, easy fix when correctly diagnosed
Why this work is different
You don't just service the appliance — you service the installation. Hinge adjustment on a panel-ready Designer unit requires re-leveling the panel, sometimes adjusting the cabinet itself. Drain line replacement requires understanding the cabinetry around the unit, not just the unit. That's why a Designer Series call from us typically takes longer than the equivalent BI call, and why we charge accordingly. The trade-off is your kitchen comes out the way it went in.
Frequently Asked Questions
Can you service a Sub-Zero Designer column without removing the custom panel?
Often yes — many repairs can be done through the kick plate or via partial pull-out. We assess panel removal need before we touch anything. When the panel must come off, we document the mounting position so we re-install it exactly where it was.
My Designer Series column has a sagging door — can it be fixed?
Yes. Heavy custom panels pull the top hinge down over years. The hinge bracket can usually be re-shimmed or replaced. If the cabinet itself has shifted, we coordinate the repair so the panel sits flush again.
What's the most common failure on a Sub-Zero Designer Series refrigerator?
Drain line clog and compressor start relay. The drain failure causes water damage if not caught early, so we always check drain flow on every Designer Series call regardless of what brought us out.
Are Designer Series panels expensive to replace if damaged?
The panel itself is made by your cabinetmaker, not Sub-Zero — replacement cost depends entirely on your cabinet shop. That's why we're careful with panel removal. We've seen major cabinet repairs from techs who weren't.
